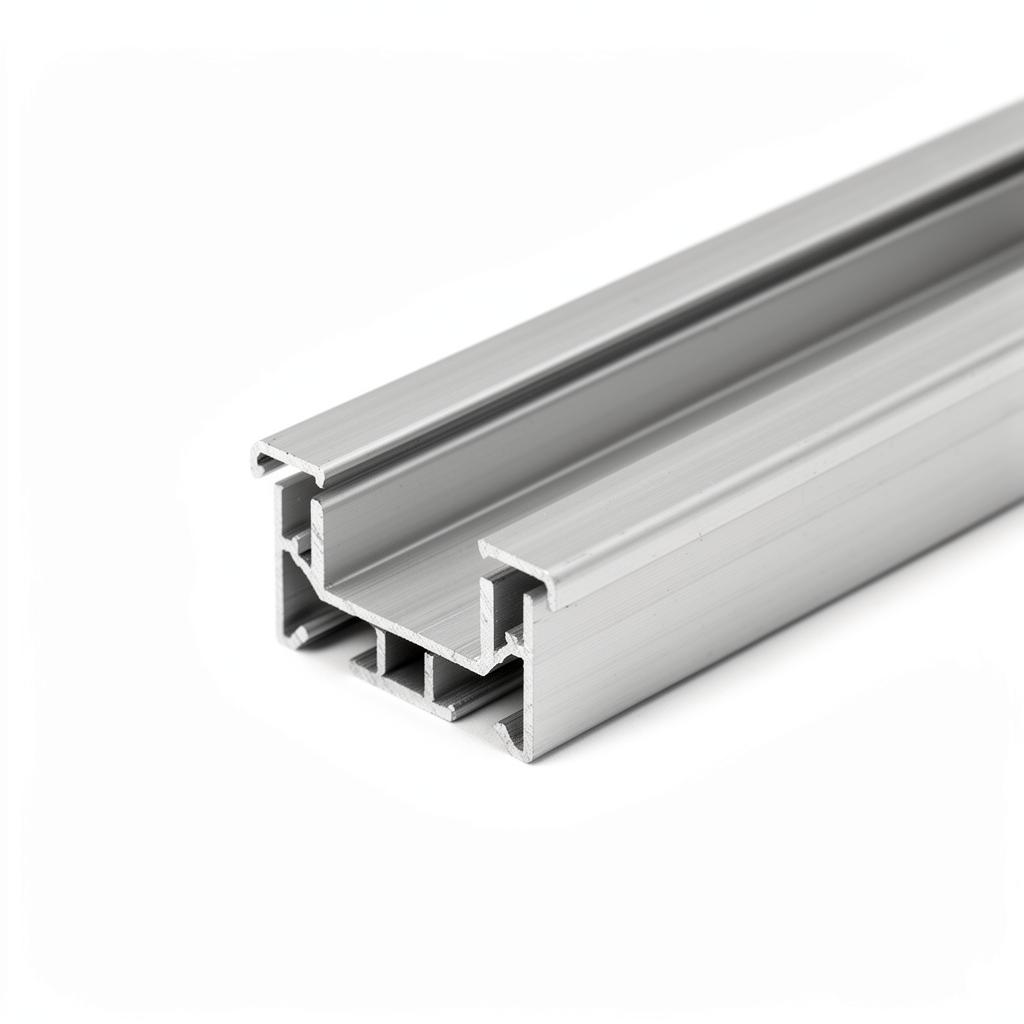

PART 0156 mm × 114.6 mm × 81 mm
Aluminium Base Profile
Extruded 6063-T6 aluminium channel, anodised, forms the structural base of the railing.
Product Catalogue · 2025
ADI Glass Railing Systems
European-engineered aluminium base profile system delivering frameless clarity, structural certainty and architectural finish for balconies, staircases, terraces and atria.
Introduction
A complete European-engineered system
The ADI Glass Railing system is built around a high-strength aluminium base profile developed to European structural standards. Every component, from the base channel and panel grip to the EPDM gasket set and handrail, is engineered to work as one integrated assembly.
Designed for frameless installations, the system delivers uninterrupted sight-lines while meeting the load, deflection and weather-tightness requirements expected of premium architectural railing.
Surface Finish · Technical Specification
Anodised aluminium for every environment
Internal Use
15μ
Anodised 15 μ coating thickness, calibrated for interior balustrades, staircases and atrium railings where corrosion exposure is limited.
External Use
25μ
Anodised 25 μ coating thickness, heavier protective layer for terraces, façades and coastal installations exposed to weather and pollutants.
System Components
Every part, engineered to spec
A complete kit of profiles, gaskets and anchoring hardware that ship together as one tested system.

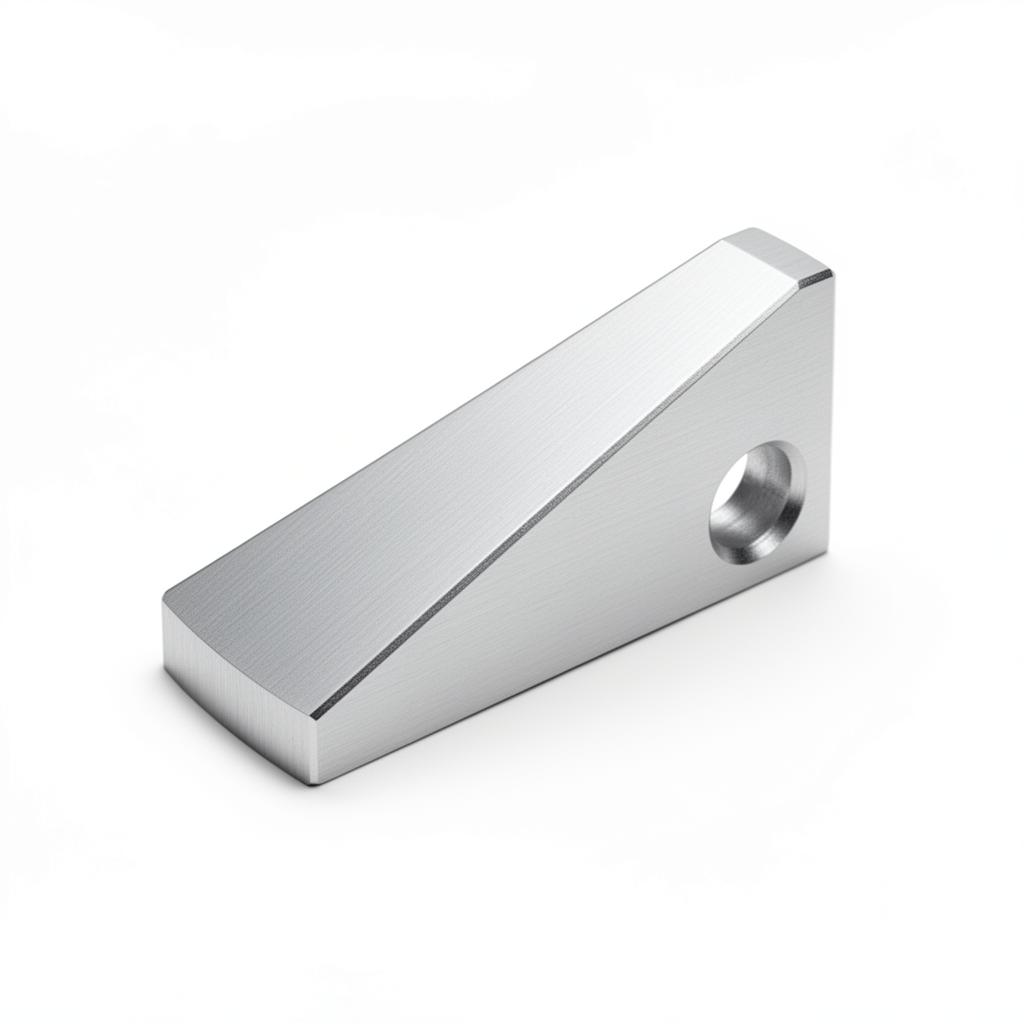

PART 02Height 101.9 mm
Panel Grip
Wedge-action grip that locks the glass panel into the base profile under load.

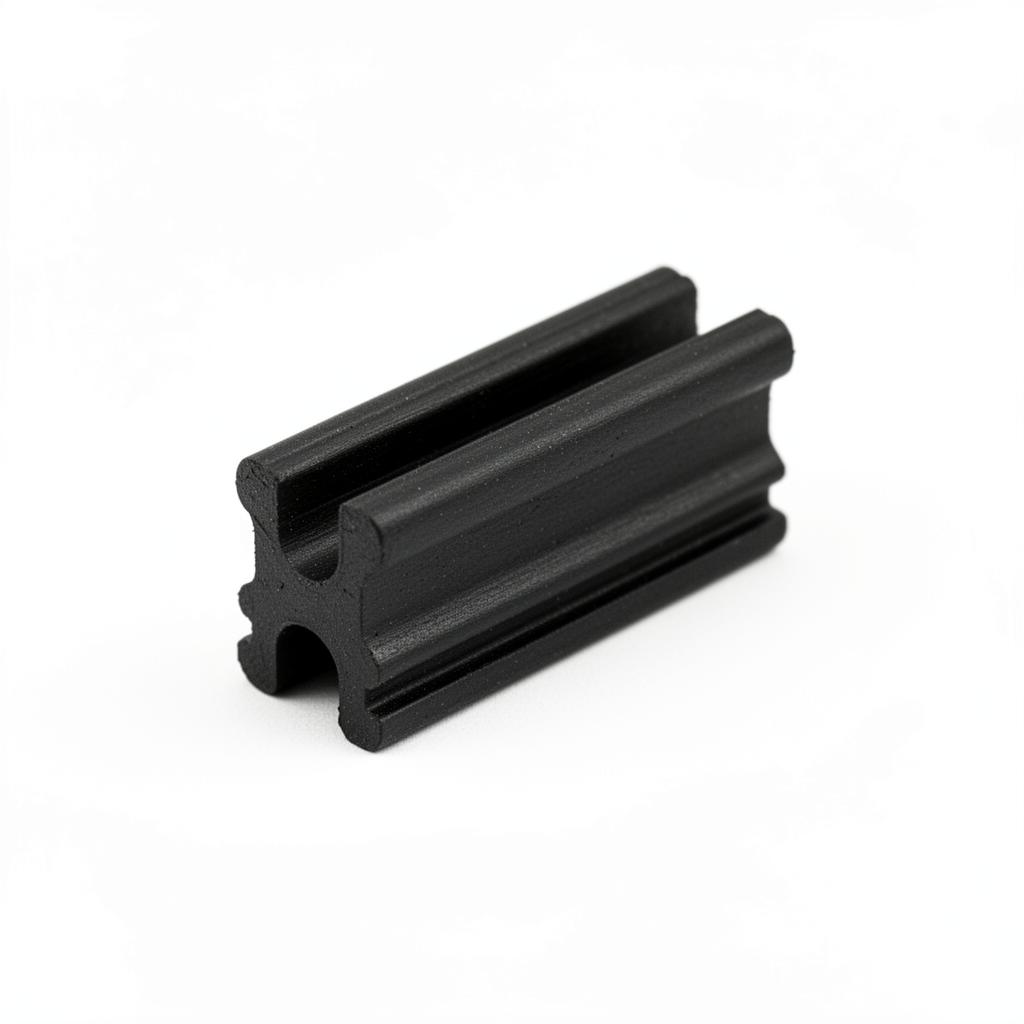

PART 03Height 87 mm · 12.07 / 9.22 mm
Isolator
Polymer isolator separates glass from aluminium and panel grip, eliminates point loads.

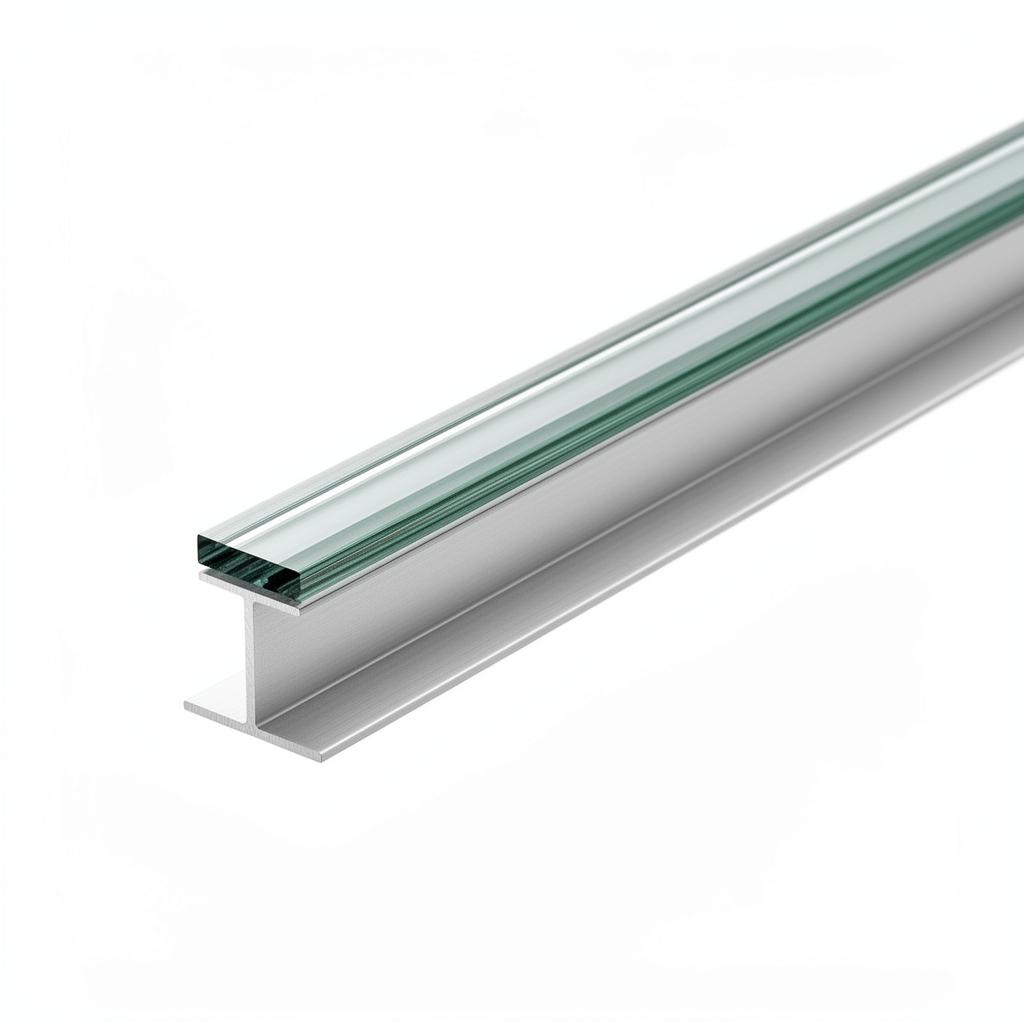

PART 0422.73 × 19.03 mm · 15 H
Glass Beading Profile
Anodised aluminium top beading that finishes the channel and conceals the gasket line.

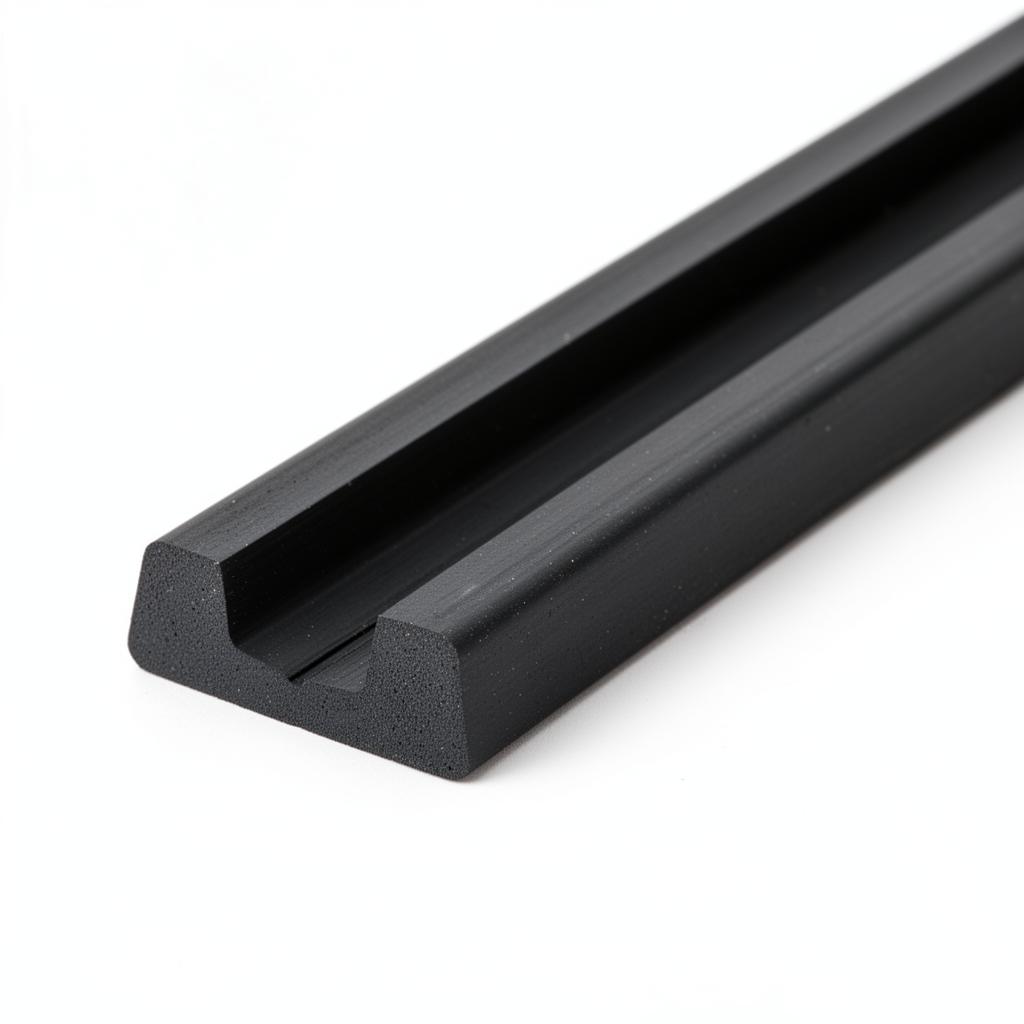

PART 05Dual-density wedge set
EPDM Gaskets, EPDM-1 & EPDM-2
EPDM-1 outer wedge and EPDM-2 inner shim work together to seal and centre the glass.

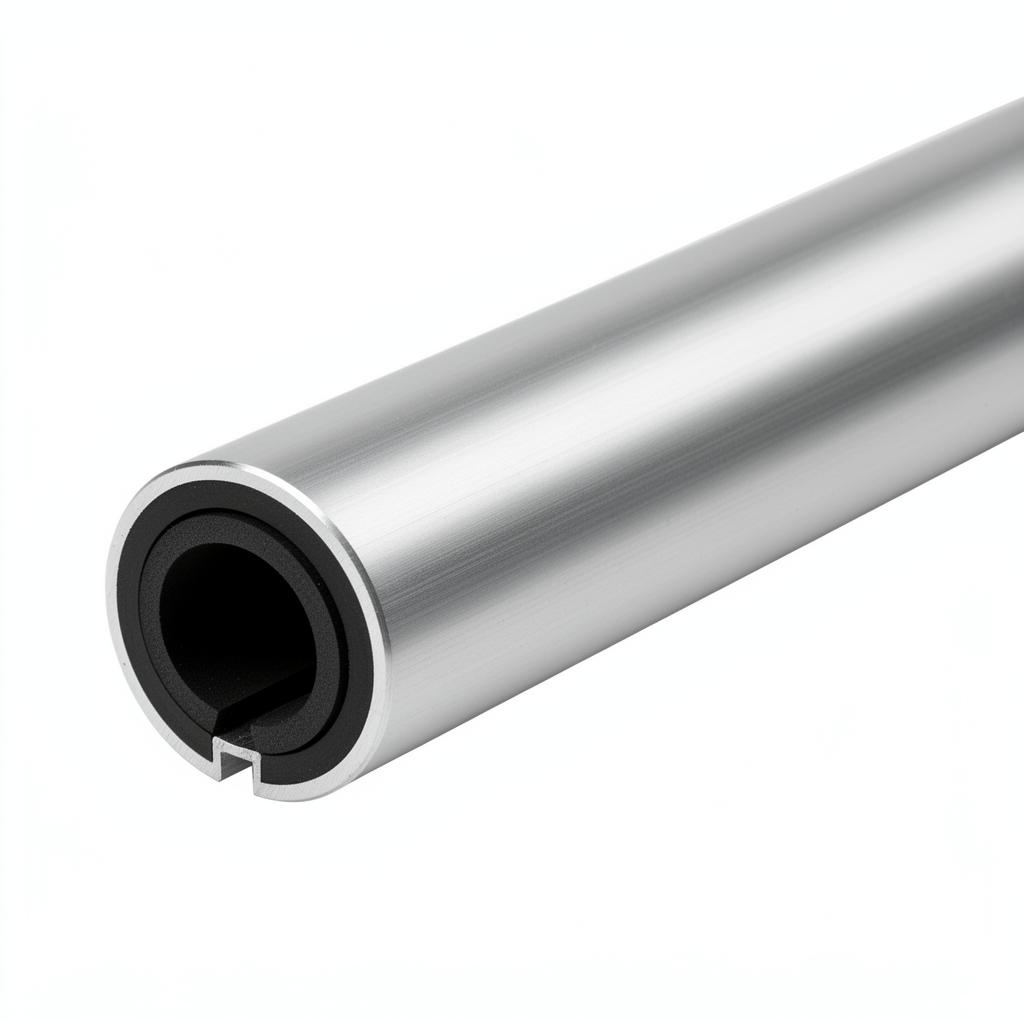

PART 06Top-mount continuous
Handrail with EPDM
Optional aluminium handrail with continuous EPDM gasket for direct seat onto glass edge.

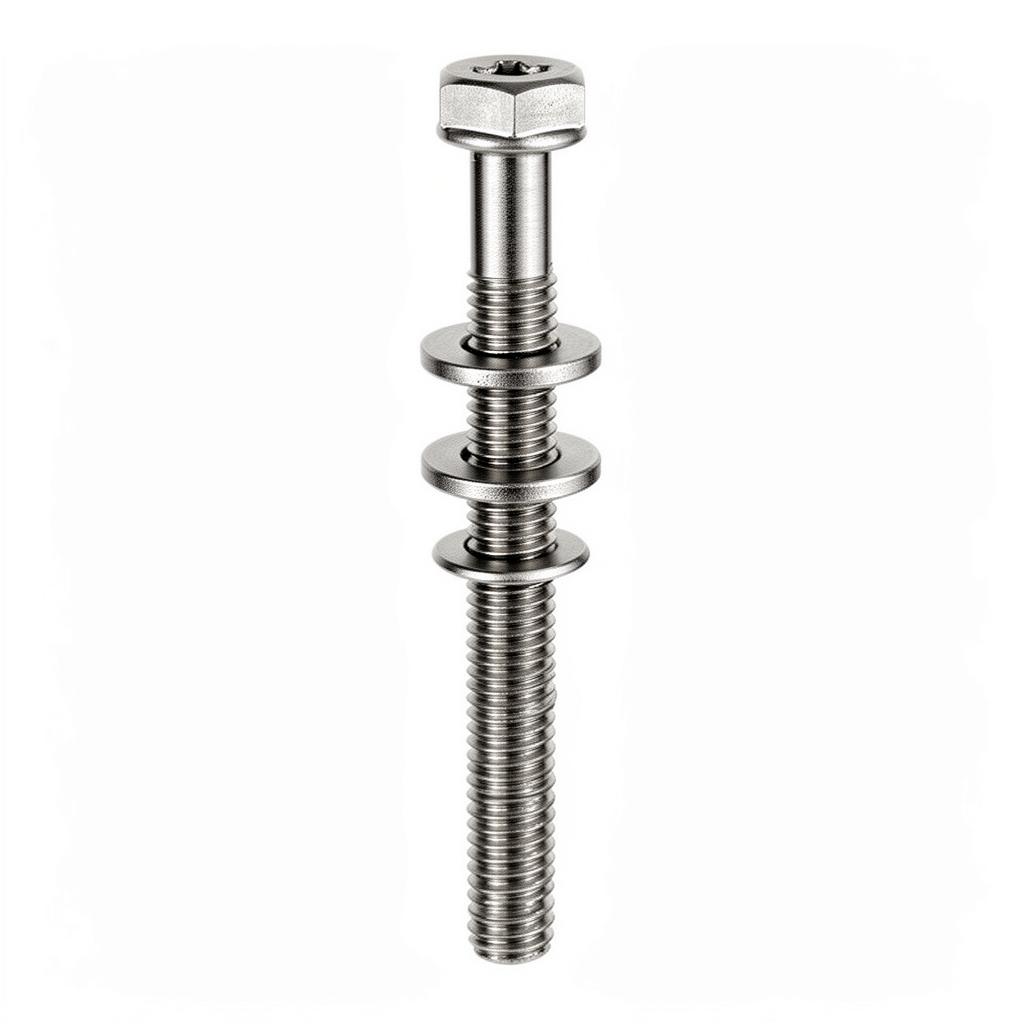

PART 07Anchor fastener to RCC
LN Bolt Anchoring System
LN bolt and fastener set anchors the base profile directly to RCC slab or kerb.

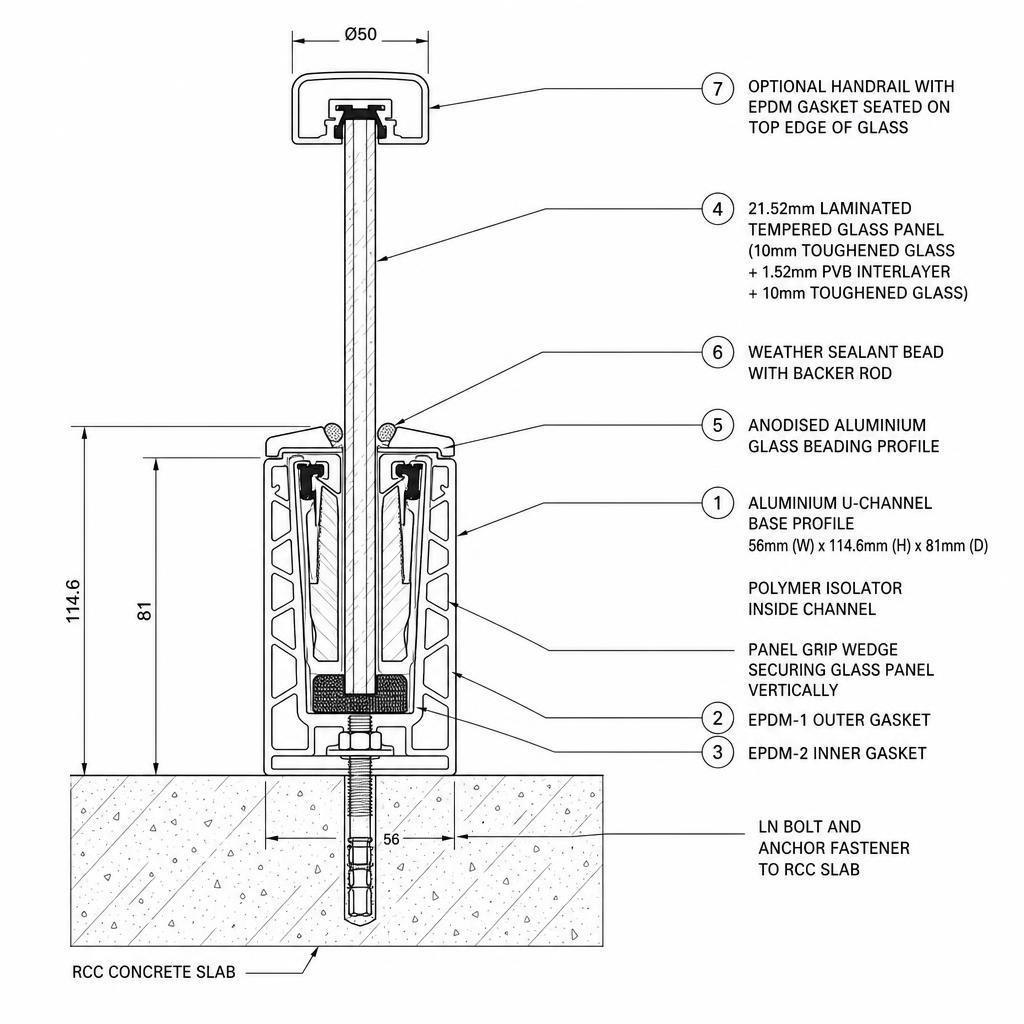

Cross-section assembly
Assembly
How the system locks together
- Aluminium glass beading profile
- EPDM gasket set (EPDM-1 + EPDM-2)
- Aluminium channel profile (base)
- Panel grip with polymer isolator
- Anchor fastener, LN bolt to RCC
- Weather sealant with backer rod
Key Features
Built for weather, load and longevity
Weather sealant + backer rod
A continuous weather seal with backer rod isolates the channel cavity from water and dust ingress.
Anchor fastener system
Engineered LN bolt and fastener set transfers load from the base profile into structural concrete.
RCC mounting
Top or fascia mounting onto reinforced concrete with calculated edge distances and embed depths.
Request technical drawings
Section drawings, load calculations, anchor details and finish samples, sent directly to your design team.
